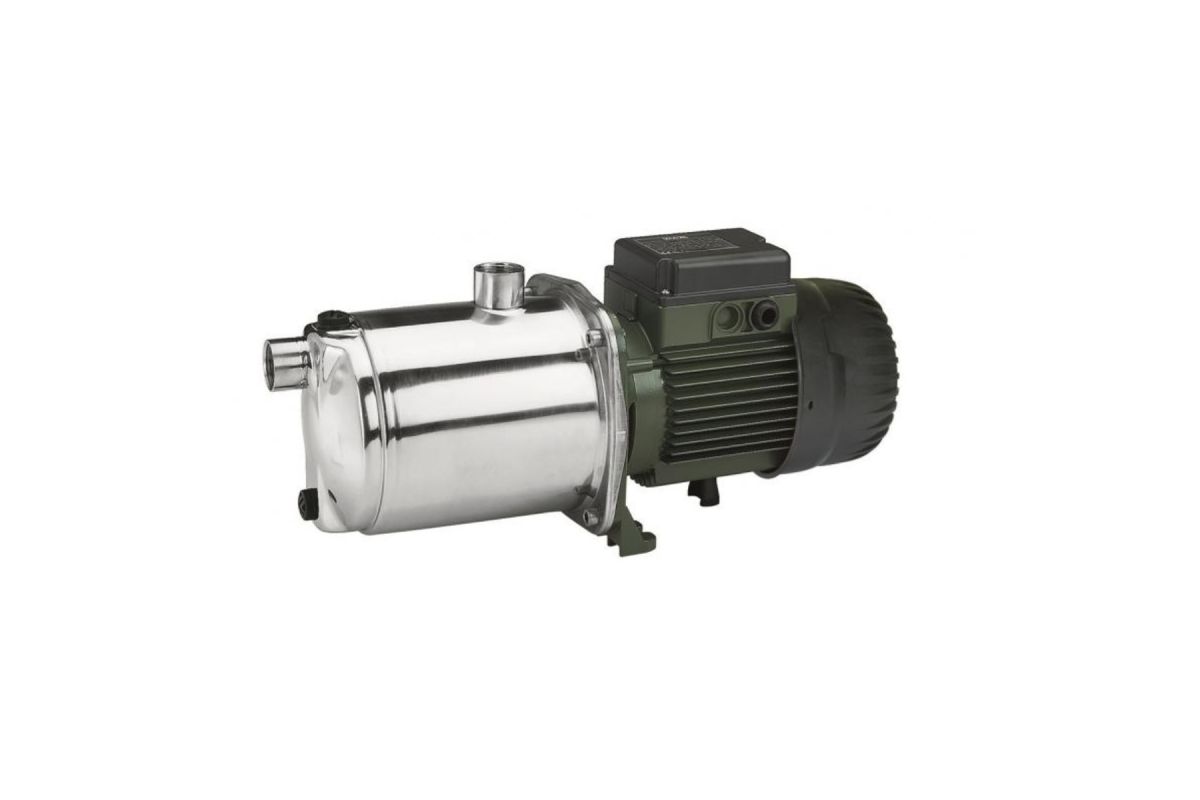

DAB Euroinox Pump 40/806M DV 115-230/60

More about DAB Euroinox Pump 40/806M DV 115-230/60

TECHNICAL DATA

• Operating Range: From 1 to 32gpm (0.6 to 7.2 m3/h) with a head up to 236ft ( 72 m) 102 psi
• Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
• Liquid temperature Range:
• from 32°F to +95°F (0°C to +35°C )for domestic use
• from 32 F to +104 F (0°C to +40°C )for other uses
• Maximum Suction depth: 26 ft (8 m)
• Maximum ambient temp: 104°F (+40°C )
• Maximum operating pressure: 116 psi (8 bar)
• Installation: fixed or portable in a horizontal position
• Special version: on request other voltages and/or frequencies
• Power Supply:  115v / 230v 60Hz Dual Voltage

Features:

• Multistage centrifugal electric pump.
• Pump body in stainless steel.
• Self-priming up to 6 mm.
• Built-in capacitor and single-phase version complete with thermal and current overload protection.

Advantages:

• The special design make these pumps exceptionally silent-running.
• High pressures of up to 8 bar can be reached.
• Optimal motor cooling.

Benefits:

• Silent running.
• Reliable.
• Optimal hydraulic performance.

Applications include:

• Domestic Water pressurization.
• Water pressurization for irrigation systems.
• Pressurization of sprinklers & sprinkler systems.
