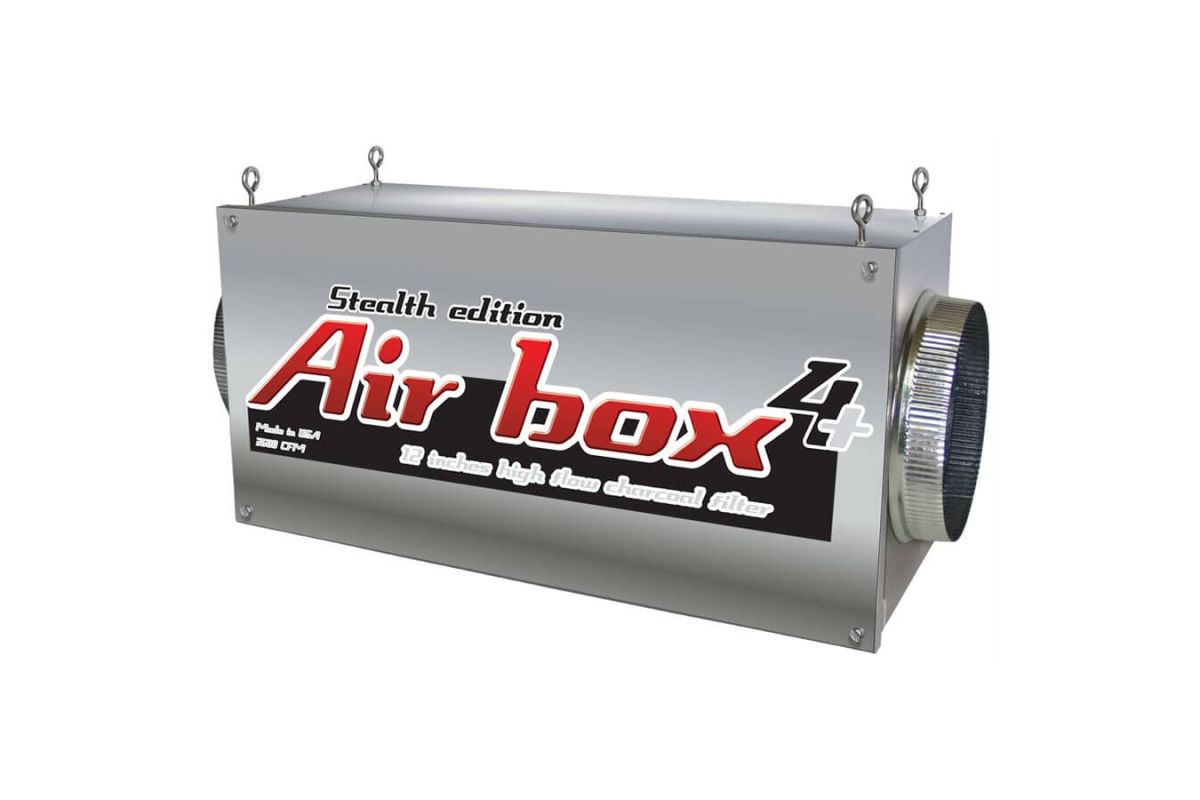

Airbox 4+ Stealth Edition 3500CFM 12"

More about Air box 4+ Stealth Edition 3500CFM 12"

Easy Installation and Maintenance

The Air Box 4+ is incredibly easy to install, use, and maintain. Its adaptability to any duct or filtering system makes it a versatile choice for various applications, including commercial, industrial, and residential settings. Replaceable high-flow carbon filters ensure optimal performance and allow you to maintain top-notch air quality effortlessly.

Premium Activated Coconut Charcoal

Crafted with 100% premium activated coconut charcoal, this carbon inline filter guarantees effective and efficient air purification. It captures and neutralizes airborne pollutants, allergens, and undesirable odors, leaving you with nothing but crisp, clean air.

Reliable, Air-Tight Operation

With its 100% air-tight construction, the Air Box 4+ ensures continuous, worry-free operation. Say goodbye to concerns about air leaks or inconsistent performance, as this filter is engineered to work flawlessly, providing you with peace of mind.

Technical Specifications:

• Recommended Airflow: 1500 @ 0.05 sec contact time
• Recommended Minimum Airflow: 1000 cfm
• Maximum cfm: 3500
• Residence Time @ Recommended CFM: 0.04
• Pressure (W.G.) @ Recommended CFM: 1.2 W.G.
• Inlet/Outlet size: 12"
• Compatible FANS: Ruck S-Prime 12”, Ruck 12″ Prime Evo, and Ruck Prime 12”
• Prefilter: Yes
• Number of Cartridges: 4 XL
• Flange: 12"
• Unit size: 32”x 17.5” x 15”
• Outlet size: 12"
• Total Weight: 120 lbs
• Cartridges Size: 16” x 24” x 1.5”
• Maximum Operating Temp: 176 F
• CTC rate: 60
• Air flow type: Designed to push or pull the Air

Dimensions:

Length: 32”

Width: 17.5”

Height: 15”

Weight: 120 lbs
