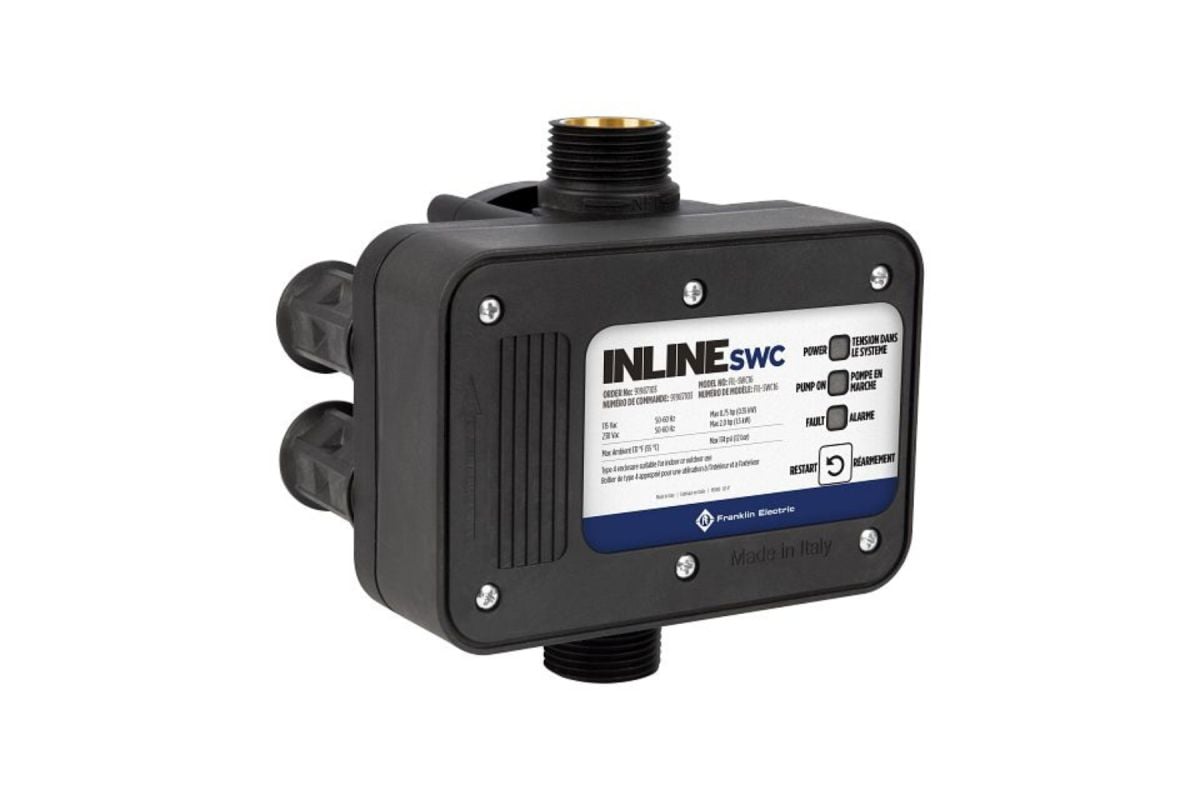

Franklin Electric Inline SWC Control Package

More details about Franklin Inline Pump Pressure Controller Model SWC

Franklin Electric’s New SWC Inline Controller can be paired with a variety of submersible or surface pumps up to 16 amps or 2 hp to provide or boost the system’s overall water pressure. In many cases, without the need of an additional bladder or pressure tank. Depending on the application requirements and the model, the controller offers various forms of system protection, including dry run, dead head pumping, over amperage, locked system, and over pressurization. They also offer two unique features that ensure the system remains functional and hassle free, including: a daily motor rotation start designed to energize the motor at least once every 24 hours to prevent system locking, and a unique automatic restart feature eliminating the need to manually restart the pump in the case of an unexpected trip or fault.

Features:

-Flow activated at 0.25gpm

-Low pressure actitivated at 22psi

-115volt or 230volt ac

-Runs 115v pumps 1/2hp & 3/4hp

-Runs 230v pumps, 1/2hp, 3/4hp, 1hp, 1.5hp and 2hp

-Includes a built-in check valve

-Protects pump from dry run, overcurrent, and pumping against a closed discharge

-Use with jet pumps, surface pumps, submersible pumps

-Self autorun feature every 24hrs to keep the system free of debris and clogs.

-Self auto-rest feature in a 24 hour period if no water is detected, to protect the pump.

-Replaces the need for an external pressure tank and differential pressure switch.

* There are several models in this series of pumps controls which you can find in the Documents section of this product. Some have some specific features that you may want such as a 20amp, 3hp size, or a built in pressure regulator to reduce incoming pressure, or a very basic model for cisterns...
