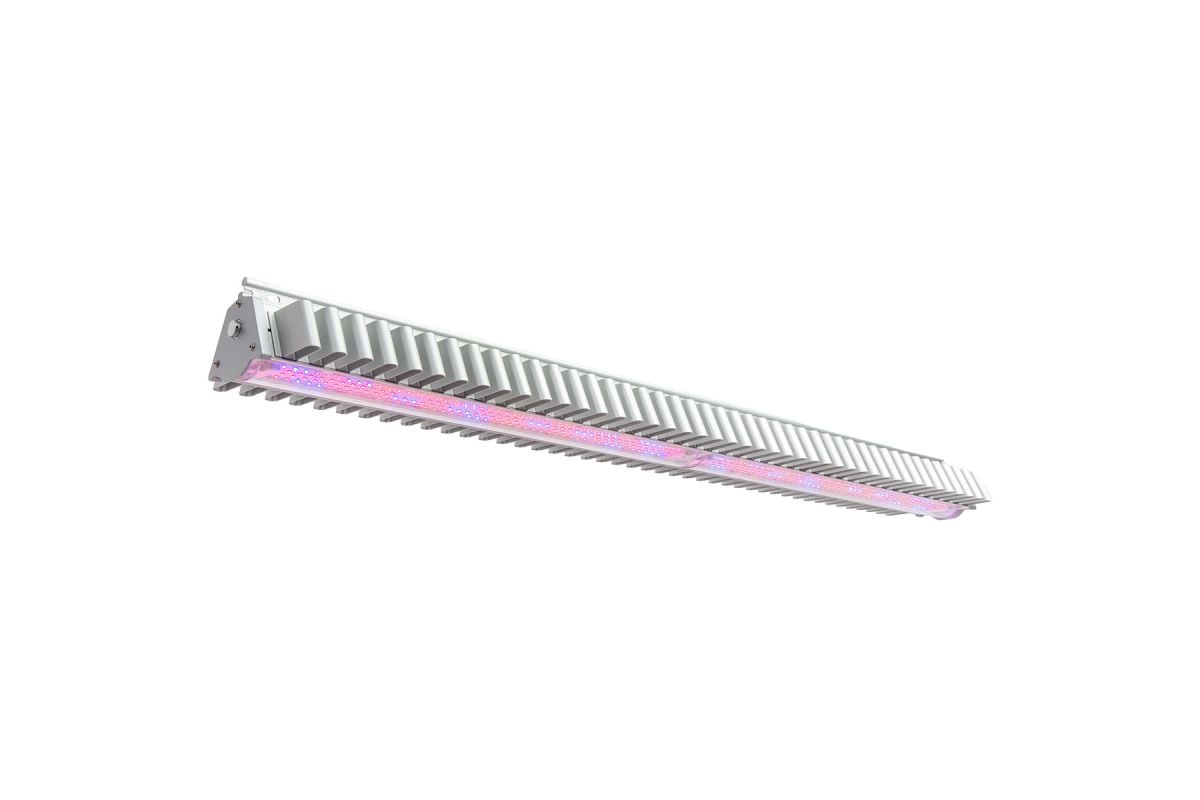

GE LED Arize Element L1000 Type-R 600W 120-277VAC

More details about GE LED Arize Element L1000 Type-R 600W 120-277VAC:

• Class-leading efficacy of up to 3.5 µmol/J
• Multiple installation options, including brackets and universal loop cables
• Unique optical design distributes light uniformly for true 1:1 HPS replacement
• PPF of up to 1827 μmol/s

• Tailored light spectrums tested to increase crop quality and yield compared to HPS fixtures
• 84% more efficient than HPS fixtures (1.9 µmol/J), slashing energy costs
• Modular design and universal installation options get you growing faster
• Sleek form factor allows for maximum natural light penetration

• For bloom phase
• Typical photon flux: 1669 umol/s
• Power: 590W
• Efficacy: 2.8 umol/J
• Dimming range: 0-10V
• Max source current: 450uA
• Dim-to-off: Yes
• Dim off voltage: 0.35-0.65V (typ 0.5V)
• Dim on voltage: 0.55-0.85V (typ 0.7V)
• Dimming output range: 10-100%
• Absolute maximum dimming voltage: 20V
• Maximum fixtures per dimmer: 156
• Power factor: >0.9
• Max remote mount distance: 12'
• Cooling: Passive
• Light distribution: Standard 120° / XW XXX°
• Operating environment: 0°C to 45°C (32°F to 113°F)
• IP rating: IP66
• Lifetime: L90=36,000 hrs
• Certifications: UL E492907, CE, DLC
• Warranty: 5 year system
• Fixture dimensions: 44.67" L x 6.78" W x 3.67" H
• Fixture weight: 7.7 lbs
• Power supply dimensions: 10.81" L x 9.96" W x 3.65" H
• Power supply weight: 7.7 lbs
