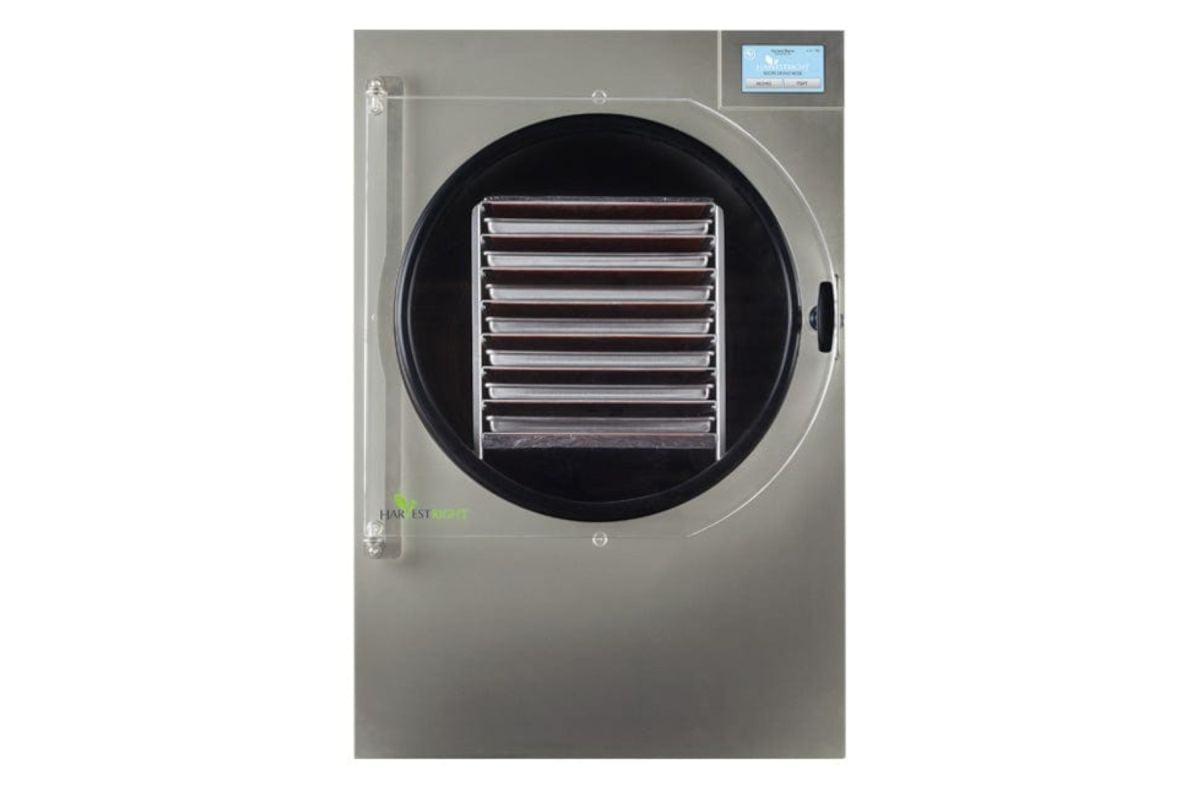

HarvestRight X-Large Scientific Pro SS Freeze Dryer W/Premium Pump

More details about HarvestRight X-Large Scientific Pro SS Freeze Dryer W/Premium Pump

High-Capacity Scientific Performance

The X-Large Commercial Scientific Freeze Dryer is built for users who require serious throughput with precise process control. With the ability to process up to 9 gallons per batch, it supports larger workloads while maintaining uniform freeze drying across all trays.

Advanced Smart Control System

Equipped with a full-color touchscreen interface, the system provides real-time visibility into temperature and pressure throughout the entire cycle. Operators can choose full automation or take manual control to fine-tune each stage of the freeze-drying process.

Memory Recall for Repeatable Results

Save and recall up to 120 custom recipes, allowing consistent, repeatable processing across a wide range of materials. This feature is ideal for laboratories, R&D facilities, and commercial producers that demand precision and standardization.

Compact & Cost-Effective Design

Despite its high capacity, this system delivers industrial-grade performance in a tabletop-style footprint, making it significantly more affordable and easier to install than traditional industrial freeze dryers.

Low-Maintenance Premium Pump

The included Premium vacuum pump offers fast pull-down times, quiet operation ensuring stable vacuum performance.

Important Electrical Requirements

• Requires a dedicated 20-amp circuit
• Uses a 115V NEMA 5-20 plug
• Extension cords are not recommended, as they may cause operational issues

Key Features & Benefits

• High Capacity
  Process 7–9 gallons per batch, ideal for commercial production and large-scale laboratory work.

• Smart Control
  Choose between fully automated cycles or manual control of temperature and pressure for maximum precision.

• Memory Recall
  Save up to 120 custom recipes for consistent, repeatable results.

• User-Friendly Interface
  A 4.3″ full-color touchscreen displays real-time process data at a glance.

• Compact & Affordable
  Industrial-level performance in a compact unit at a fraction of the cost of comparable systems.

What's Included

• X-Large Commercial Scientific Freeze Dryer
• Premium Vacuum Pump
• Seven (7) Stainless Steel Trays
• Owner’s Manual
• Power Cord (115V NEMA 5-20)

Technical Specifications

• Dimensions: 35.6″ H × 24.3″ W × 37.4″ D
• Tray Count: 7 Stainless Steel Trays
• Batch Capacity: 7–9 Gallons
• Ice Capacity: 7 Gallons (Sublimated Ice)
• Minimum Temperature: Collector cools to −40°F (−40°C)
• Exterior: Stainless Steel
• Display: 4.3″ Full-Color Touch Screen
• Operation Modes: Manual / Automated
• Vacuum Pump: Premium Pump (Included)
• Power Requirements: 115V NEMA 5-20 • Dedicated 20-Amp Circuit Required

Ideal Users

• Scientific and research laboratories
• Commercial freeze-drying operations
• Nutraceutical and pharmaceutical developers
• Food innovation and ingredient processing facilities
• Businesses seeking scalable freeze-drying without industrial overhead

Ideal Applications

• Laboratory sample preservation
• Commercial freeze drying of food and ingredients
• R&D and formulation testing
• Nutraceutical and pharmaceutical processing
• Specialty material preservation
