HydroLogic Flow Meter HC 3-30/GPM 1'' NPT BIGBoy
SKU
06030000007

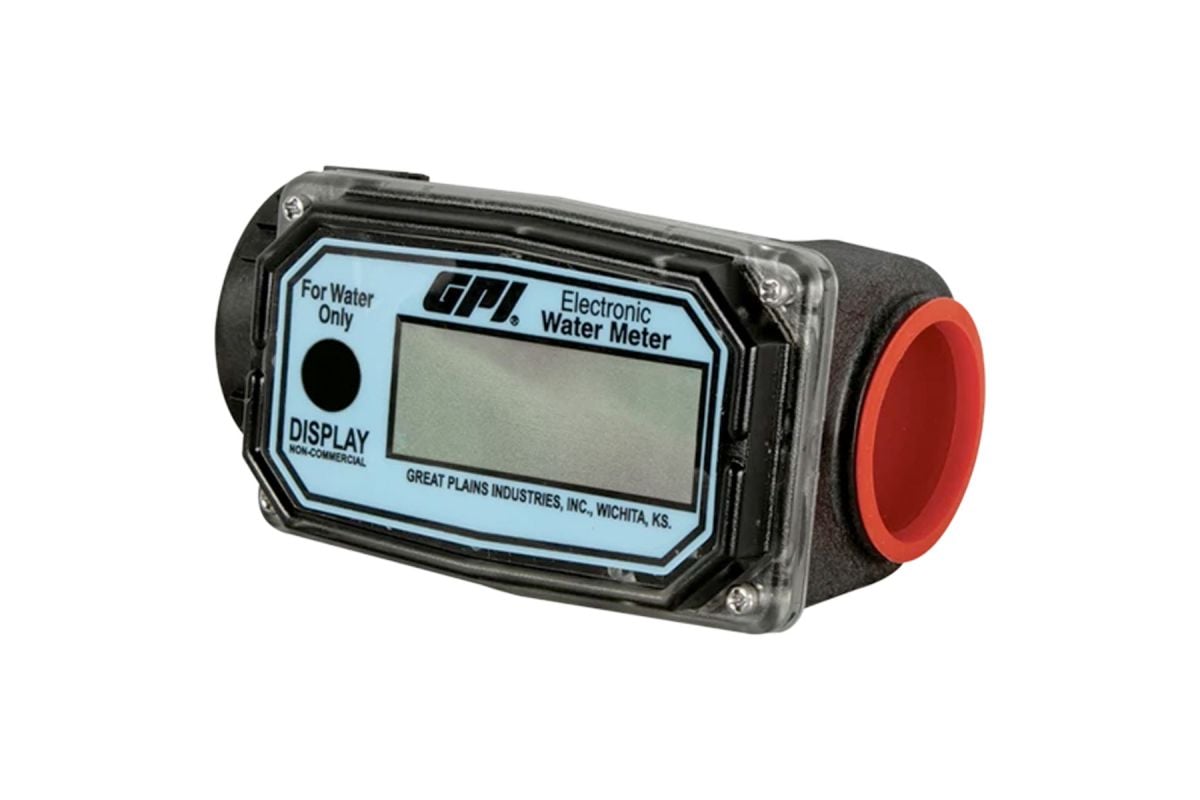

This high volume flow meter is a simple, small and sturdy electronic digital water meter with rugged nylon housing.
More details about HydroLogic Flow Meter HC 3-30/GPM 1'' NPT BIGBoy:
Powered by two AAA batteries that are simple to replace, this meter works well on any pump or gravity feed system with at least 3-30 GPM flow range.Able to be mounted in-line on the end of a hose or a pipe, the 01N31GM is a complete meter including turbine assembly, microprocessor and large display LCD readout in gallons for both accumulative and batch totals.
Specifications
- Design type: Turbine
- Fitting size: 1"
- Fitting type: NPT
- Flow range: 3-30 GPM (10-100 LPM)
- Accuracy: ±5.0% of reading
- Repeatability: ±.5%
- Pressure rating: 150 PSIG (10.2 BAR)
- Operating temperature: +14°F to +131°F (-10°C to +55°C)
- Dimensions: 4.25" L x 2.75" W x 2.5" H
- Weight: 0.44 lbs
| SKU | 06030000007 |
|---|---|
| Part Number | 19021 |
| Acomba | 450330 |
| Shipping Weight (lbs) | N/A |
| Shipping Length (in) | 0.00 |
| Shipping Width (in) | 0.00 |
| Shipping Height (in) | 0.00 |
| USD Price | 0.00 |
| Discontinued | Yes |
