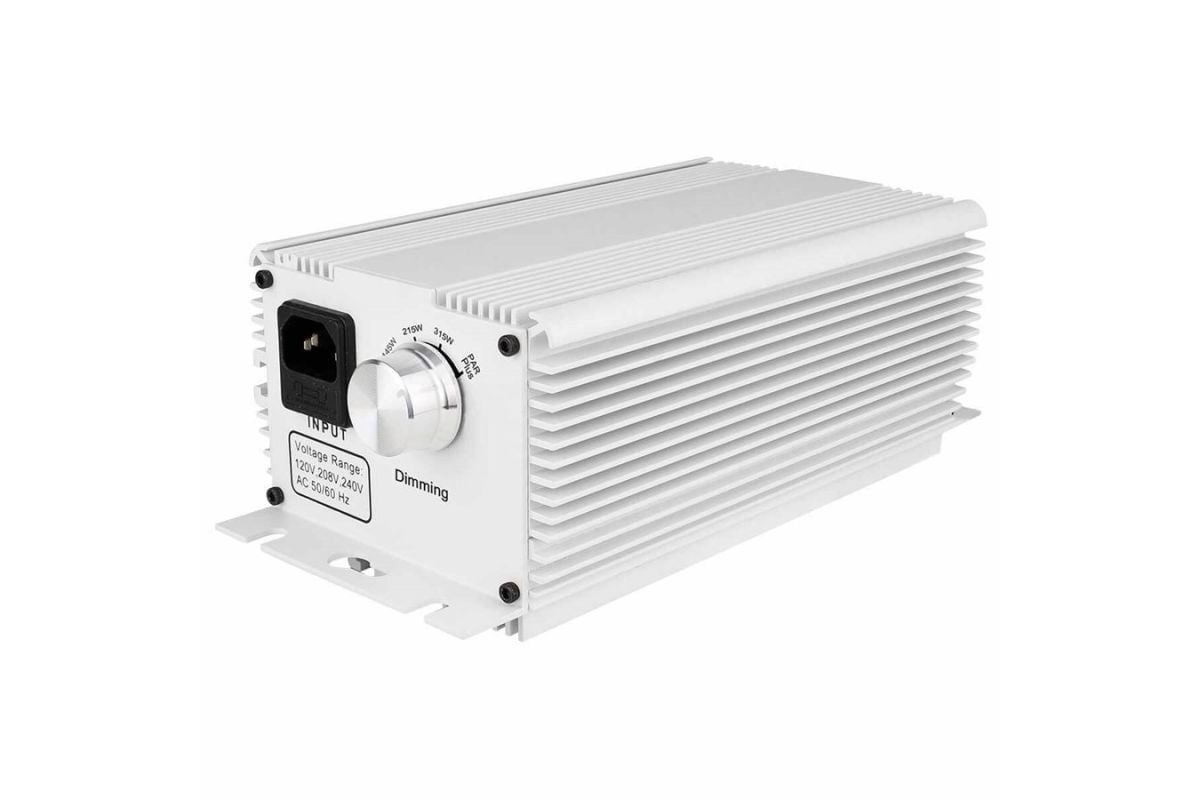

Lightspeed Digital CMH 315W Ballast DIM Dial
SKU
04514500008
Low frequency, square wave, soft start with short-circuit/circuit overheat/lamp-failure protection. Intelligent source controller with auto-adapt light decay technology. Can control luminous decay of any CMH lamp and keep lumen maintenance rate higher than 95% at 20,000 hours. Rated life of 50,000 hours. 6' - 120V power cord included.
| Product Image | Sku | Product Name | MSRP Price | Add to cart |
|---|---|---|---|---|
|
04515000006 | Lightspeed Pro CMH 315W 120-240V Enclosed |
 $219.95 $160.65 |
|
|
04515000003 | Lightspeed Pro CMH 315W 208-277V Enclosed |
$229.95$167.96 |
|
|
04515000004 | Lightspeed Pro CMH 315W 347V Enclosed |
$234.95$171.61 |
|
|
04515000007 | Lightspeed Pro CMH Dual 315W 277-347V Enclosed |
$299.95$219.08 |
|
More details about Lightspeed Digital CMH 315W Ballast DIM Dial:
Specifications- Power: 315W dimmable
- Input voltage (AC): 120/208/240V - 50/60Hz
- Line current: 2.83A @ 120V - 1.63A @208V - 1.42A @ 240V
- Ac Inrush current (Max): Cold start
- Rated power: 340W
- Output voltage (AC): 100V
- Power factor (PF): >0.99
- THD (Input): <6%
- Efficiency: >91% @240V
- Operating frequency: 140-160Hz
- Trigger voltage: 6KV (Max)
- Ballast power dissipation: 25W
- Light output: 0W (off), 145W, 215W, 315W, 355W
- Lamp type: CMH: 315W-210W MH/QMH:350W
- Protection function: Short-circuit protection, open-circuit, over-voltage, under-voltage, over-current, hot lamp startup lightning, over heat, and lamp failure
- Storage: Ballast should be stored in dry environment with temperature -22°F/-30°C to +104°F/+40°C
- 1 Year warranty
- Unit dimensions: 12.75" L x 4.75" H x 7.75" W
- Unit weight: 9 lbs
| SKU | 04514500008 |
|---|---|
| Part Number | EB-GCMH-315R |
| Acomba | 101314 |
| Shipping Weight (lbs) | 10.00 |
| Warranty | 1 year |
| Shipping Length (in) | 13.07 |
| Shipping Width (in) | 7.56 |
| Shipping Height (in) | 5.25 |
| USD Price | 0.00 |
| Discontinued | Yes |
