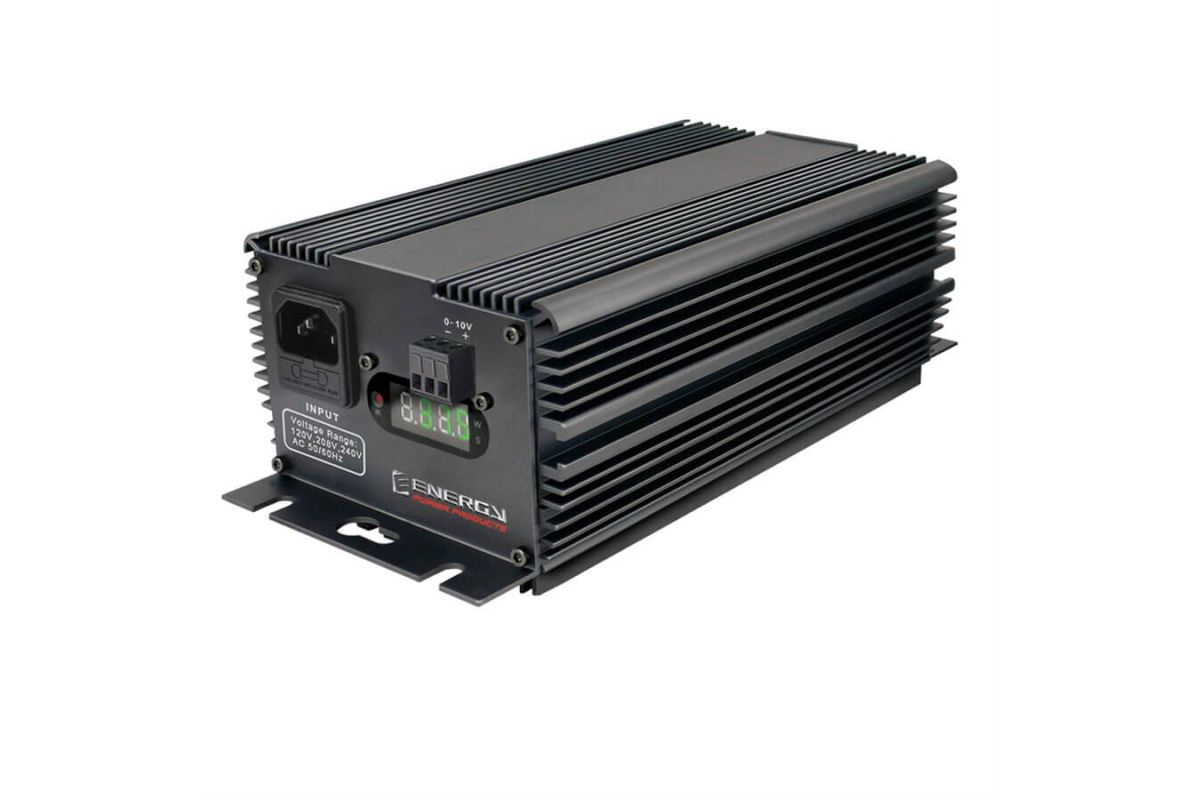

Lightspeed Digital CMH Ballast 315W Deluxe
SKU
04514500011
Low frequency, square wave, soft start with short-circuit/circuit overheat/lamp-failure protection. Intelligent source controller with auto-adapt light decay technology. Can control luminous decay of any CMH bulbs and keep lumen maintenance rate higher than 95% at 20,000 hour. Smart infrared remote control (optionnal) dimmer power of memory, power output control: 355W, 315W, 215W, 145W, 0W (power off). Ignition distance is up to 66 feet (20 meters). Rated life of 50,000 hours. 6' - 120V power cord included.
| Product Image | Sku | Product Name | MSRP Price | Add to cart |
|---|---|---|---|---|
|
04515000006 | Lightspeed Pro CMH 315W 120-240V Enclosed |
 $219.95 $160.65 |
|
|
04515000003 | Lightspeed Pro CMH 315W 208-277V Enclosed |
$229.95$167.96 |
|
|
04515000004 | Lightspeed Pro CMH 315W 347V Enclosed |
$234.95$171.61 |
|
|
04515000007 | Lightspeed Pro CMH Dual 315W 277-347V Enclosed |
$299.95$219.08 |
|
More details about Lightspeed Digital CMH Ballast 315W Deluxe:
Specifications- Power: 315W
- Input Voltage (AC): 120V/208V/240V, 50/60Hz
- Line Current: 2.83A@120V - 1.63A@ 208V - 1.42A@240V
- AC Inrush Current (Max): Cold start, 50A/230V
- Rated Power: 340W
- Output Voltage (AC): 100V
- Light Decay Control Attenuation: <5%/20000h
- Power Factor (PF): >0.99
- THD (Input): <6%
- Efficiency: >91%@240V
- Operating Frequency: 140~160Hz
- Trigger Voltage: 6KV (Max)
- Ballast Power Dissipation: 25W
- Out Power / Light Output: 0W (Off), 145W, 215W, 315W, 355W (N type except)
- Communication Interface: 0~10V with dimmer, IR remote control @ Max power (N type except)
- Lamp Wire Length (Max): >66 feet/20 meters (16 gauge lamp wire)
- Protection Function: Protection of short-circuit, open-circuit, over-voltage, under-voltage, over-current, hot lamp startup, lightning, over heat, and lamp failure with lamp life warning
- Storage: Ballast should be stored in dry environment with temperature -22ºF/-30ºC to +104ºF/+40ºC
- Unit dimensions: 4.9" L x 15" W x 3.5" H
- Unit weight: 6.11 lb
- 1 Year warranty
| SKU | 04514500011 |
|---|---|
| Part Number | EB-GCMH-315D |
| Acomba | 101310 |
| Shipping Weight (lbs) | 7.44 |
| Warranty | 1 year |
| Shipping Length (in) | 7.50 |
| Shipping Width (in) | 14.00 |
| Shipping Height (in) | 4.50 |
| USD Price | 0.00 |
| Discontinued | Yes |
