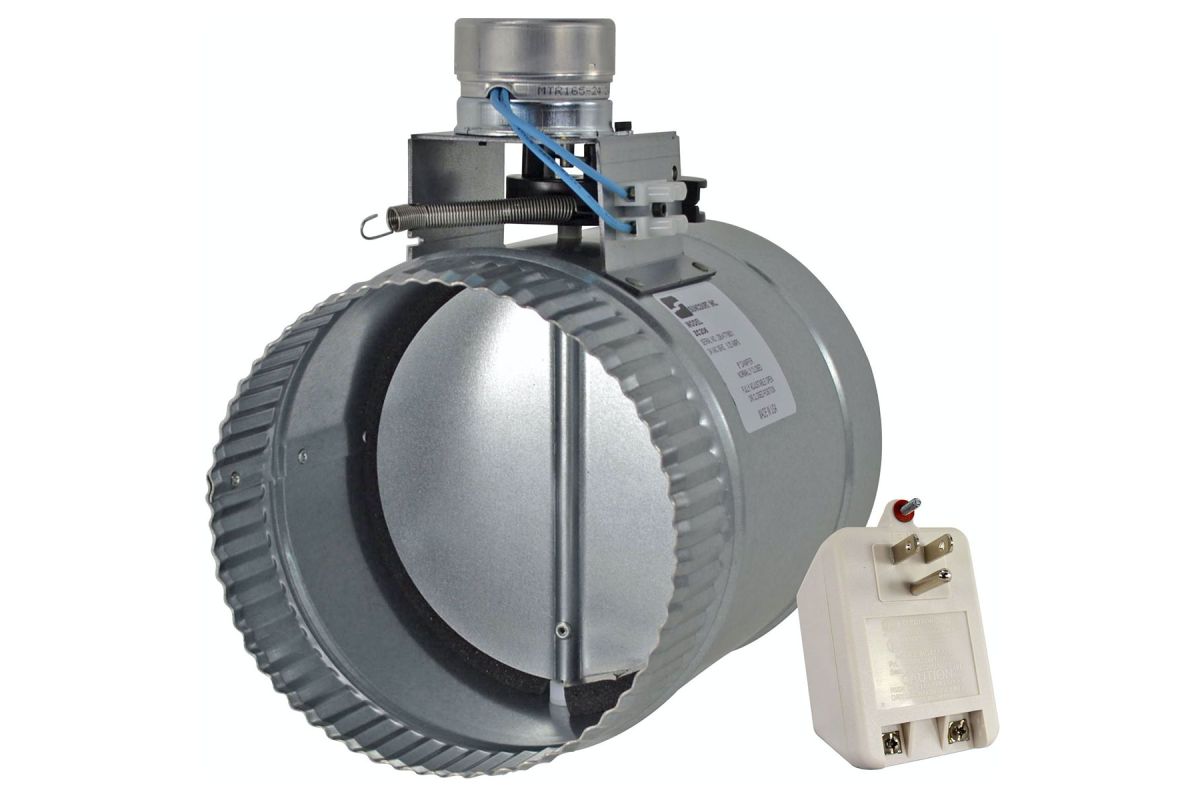

Motorized Damper 8"
SKU
05021000056
Control airflow in an HVAC system or fresh air intake with this motorized damper.
More details about Motorized Damper 8":
Features- Adjustable close or open position range stops
- Shipped as power closed/spring return or power open/spring return
- Male crimped and female uncrimped ends to connect to rigid or flexible round duct
- 20 gauge blade closes against gasket for minimal leakage
- Simple easy-to-wire, two wire installation
- 1 RPM, 60 Hz, 6 Watts Maximum Torque 78 in.-oz. 2 Wire Synchronous Hysteresis Motor
- Safe, UL listed 24VAC/20 VA plug-in transformer included
- Gauge housing: 25
- Tremendous energy saver
- Free-wheeling coupling for long life
- 8" long metal housing
- 3 year limited warranty
Dimensions & weight
- Shipping dimensions: 8.25" L x 8.25 W x 10.50" H
- Shipping weight: 3.75 lbs
| SKU | 05021000056 |
|---|---|
| Part Number | ZC/206 |
| Acomba | 4800 |
| Shipping Weight (lbs) | 3.75 |
| Warranty | 3 years |
| Shipping Length (in) | 8.25 |
| Shipping Width (in) | 8.25 |
| Shipping Height (in) | 10.50 |
| USD Price | 0.00 |
| Brand | Suncourt |
