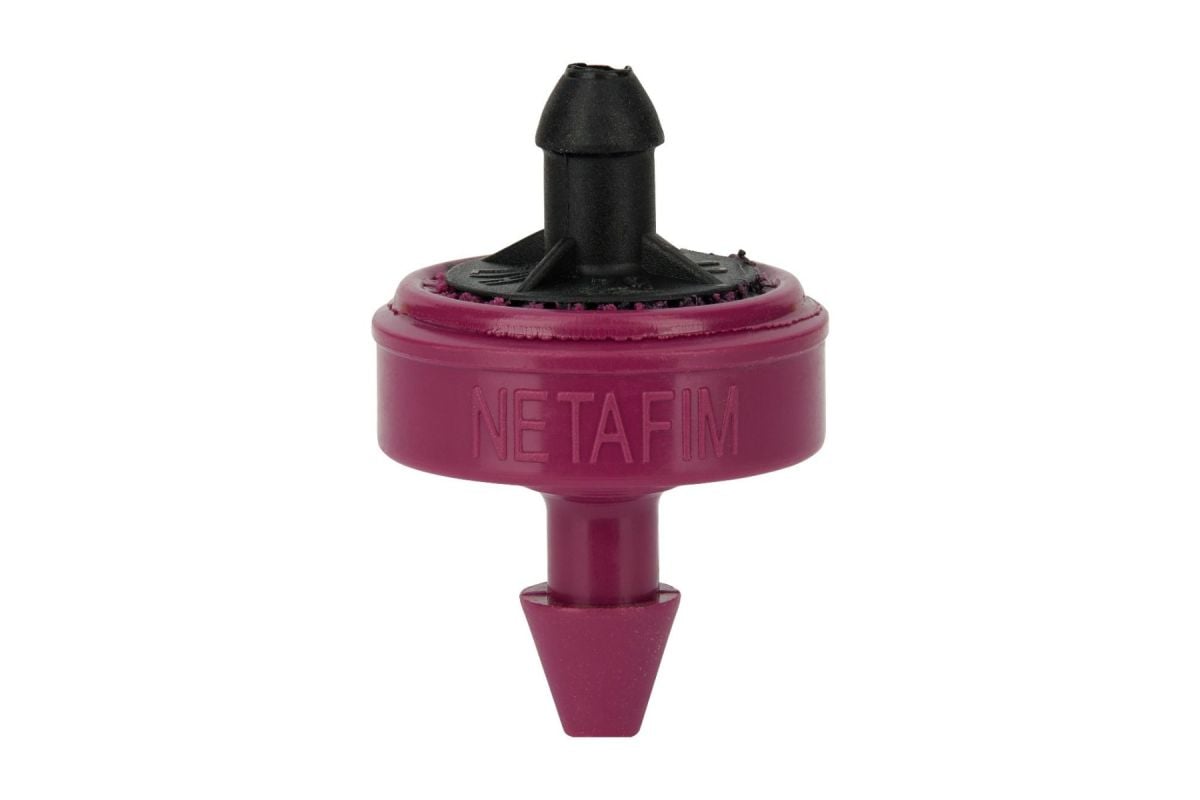

Netafim WPCJ 12L/H 3.2 GPH Barbed Outlet Plum (250/Pk)
SKU
06026000127
MSRP:
CAD
$150.95
USD
$111.00
CAD
$150.95
USD
$111.00
Pressure Compensating Drippers
The Netafim Woodpecker Junior Drippers have a barbed outlet and CNL check valve that helps prevent low emitter drainage. The anti-siphon operation prevents contaminants from being drawn into the emitter. These Woodpecker Drippers are pressure compensating and deliver the same flow from 12 - 58 PSI. The barbed outlet fits the Netafim Super Flex UV White PE Tubing (HGC747561).
The Netafim Woodpecker Junior Drippers have a barbed outlet and CNL check valve that helps prevent low emitter drainage. The anti-siphon operation prevents contaminants from being drawn into the emitter. These Woodpecker Drippers are pressure compensating and deliver the same flow from 12 - 58 PSI. The barbed outlet fits the Netafim Super Flex UV White PE Tubing (HGC747561).
More about Netafim Woodpecker Pressure Compensating Junior Dripper Barbed Outlet Plum 3.2 GPH
Provide uniform flow distribution
Pressure Compensating Drippers (PC) developed with advanced pressure compensating technology delivers a uniform flow rate even in areas with difficult topographical conditions. A unique pressure differential mechanism regulates flow and provides self-cleaning action, even while irrigating – for a clog-resistant design and high emission uniformity.
Why Pressure Compensating Drippers?
- Higher and Better Quality Yields: 100% uniformity of water and nutrient delivery over a broad pressure range ensures uniform crop yields and bigger harvests.
- Clogging Resistance: Continuous self-flushing technology ensure consistent flow-rates and flawless operation – even with harsh water.
- Easy to Scale: Number of drippers can be easily increased ensuring sufficient water to meet your crop growth rate requirements.
- Maximum Flexibility: Micro-tubes allow drippers to be positioned exactly where required, and split into several drip outlets if needed.
- Anit-Drain Mechanism (CNL Feature): Eliminates drainage & refill effect, and improves efficiency during pulse irrigation.
Product Advantages
- Patented pressure differential system maintains uniform flow rate at different inlet working pressures (within the recommended range) ensuring exact distribution of water and nutrients.
- Industry’s widest flow path and wider dripper cross-section allow large particles through the dripper’s short flow path.
- Continuous self-flushing system, even while irrigating, provides improved resistance to clogging.
- Ideal for areas with difficult topographical conditions.
Applications
- Vineyards
- Orchards
- Greenhouses and Nurseries
Specifications
- Flow rates: 0.5, 1.0 and 2.0 GPH
- Pressure compensation range: 10.15 to 58 psi
- Maximum pressure: 58 psi
- Uses 0.160” x 0.220” micro-tubing (Model EDTUBE – in black or white)
- Barb size: Inlet 0.160” – 0.170” Outlet 0.160”
- Recommended minimum filtration: 120 mesh
| SKU | 06026000127 |
|---|---|
| Part Number | 01WPCJL12-B |
| Acomba | 01WPCJL12-B |
| Shipping Weight (lbs) | 0.00 |
| Shipping Lenght (in) | 0.00 |
| Shipping Width (in) | 0.00 |
| Shipping Height (in) | 0.00 |
| USD Price | 111.00 |
