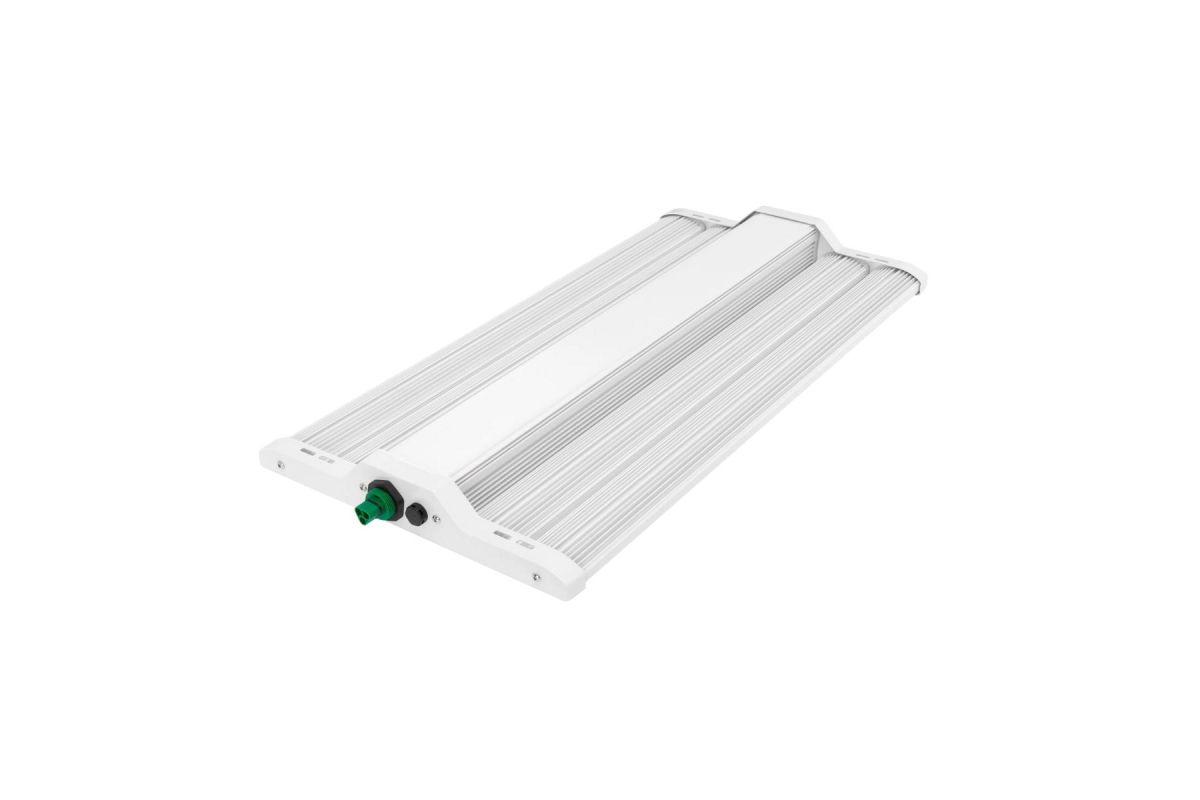

Papillon LED Avalon 375W 208-400V (No Power Cord)

More about Papillion LED Avalon 375W 208-400V (No Power Cord)

Ideal for Small Rooms with Good Uniformity

In spaces with limited height, the Papillon LED Avalon 375W excels. Applications requiring lower light levels often demand a high level of uniformity, and this fixture delivers. The lenses of the Avalon 375W spread the light beam over a wide area, ensuring excellent uniformity even at smaller distances. This makes it particularly suitable for environments where achieving uniform light distribution is critical.

Dimmable and Programmable

Available in both dimmable and non-dimmable versions, the Papillon LED Avalon 375W provides flexibility in light intensity control. With a dimming range of 30-100% of the nominal output, users can customize the light according to their specific needs. Additionally, the fixture can be programmed ex-factory to deliver the desired power and light output.

Wide Range Internal Driver for Flexible Installation

The internal driver of the Papillon LED Avalon 375W accommodates a wide voltage range, allowing the same fixture to be used on both 400V and 230V systems. This feature enhances installation flexibility, especially in smaller or temporary setups.

Papillon LED Avalon 375W Greatest Assets:

• Easy Mounting: Compatible with wire hangers or cables.
• Lightweight: Weighing only 4.5 kg.
• Wieland Socket: Designed for use with 220 - 240V.
• 600 LEDs per bar
• Easy connect to controller
• Dimmable from 30 - 100%
• Lightweight, only 4.3 kg

Technical Specifications:

• Papillon LED Avalon 375W
• Output: 90-5-5: 1175 µmol/s,
• Output indoor white: 878 µmol/s,
• Output 79-8-5-8: 1162 µmol/s
• Efficiency: 90-5-5: 3.1 µmol/J,
• Output indoor white: 2.3 µmol/J,
• Output 79-8-5-8: 3.1 µmol/J
• Angle Beam: 120°
• IP Rating: IP65, Class I
• LED Power: 375W
• Product Dimensions: 25.7” x 12.4” x 20.1”
• Dimming: 25%-50%-75%-100%, (30% – 100% with controller)
• Input Voltage: 208V - 400V
• Product Weight: 9.3 lbs
• Certifications: CSA, DLC, IP65 class 1
• Country of Origin: Design: The Netherlands, Manufactured: P.R.C.
• Warranty: 5 Years

Dimensions:

Length: 25.7”

Width: 20.1”

Height: 12.4”

Weight: 9.3 lbs
