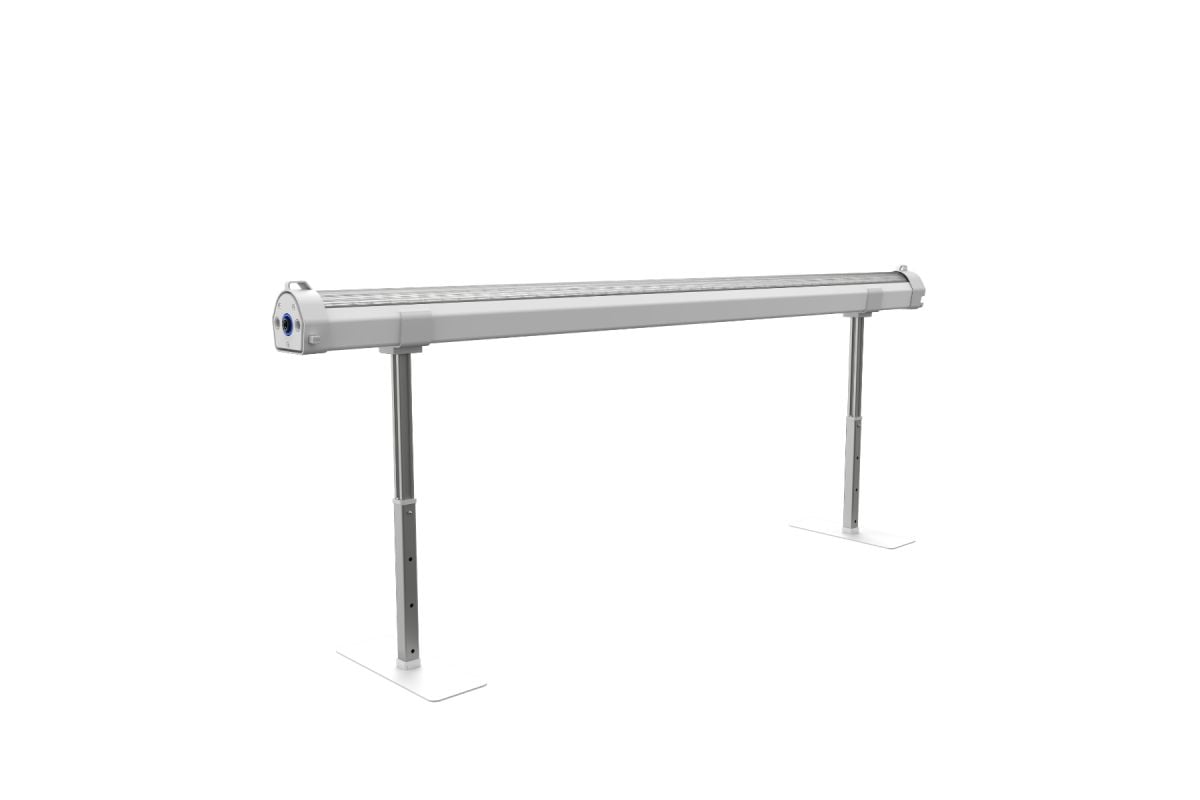

Wachsen Under Canopy Light Dual Channel 4' 145W Red Spectrum + Far Red 120-277V (2/Pk)

More details about Wachsen Under Canopy Light 4’ 145W Dual Channel Red Spectrum + Far Red 120-277V (2/Pk)

Optimized dual-channel supplemental lighting for commercial cultivation

Enhance lower-canopy performance with the Wachsen Dual-Channel Under Canopy Light, engineered for high efficiency, uniform light distribution, and advanced spectrum control. Available in 4 ft, this fixture is designed to deliver professional-grade supplemental lighting directly beneath the plant canopy while reducing dark zones and improving light penetration.

Key Features:

High-Efficiency Output

Delivers up to 435 μmol/s PPF, with efficacy up to 3.0 μmol/J for strong under-canopy performance and efficient energy use.

Dual-Channel Spectrum Control

Features an optimized red-spectrum channel with an independent far-red channel for more precise light management throughout the full growing cycle.

Channel 1: White + Blue + Red

Channel 2: Far Red

Dynamic Power Shift

When the far-red channel is turned off, power is transferred back to Channel 1 for maximum red-spectrum output.

128W red spectrum + 17W far red

Cordless Daisy-Chain Connection

Plug-to-plug connection helps ensure uniform light distribution without dark zones and allows quick, clean installation across commercial benching systems.

Daisy-chain capacity:

145W model: 7 units @ 120V

145W model: 14 units @ 240V

145W model: 17 units @ 277V

0–10V 2-Channel Dimming

Supports 0–10V dimming with 2-channel control, allowing growers to adjust both full-spectrum and far-red output based on crop stage and production strategy.

Flexible Bracket Mounting

Bracket-mounted design with adjustable height from 8" to 15". Foldable bracket structure allows for fast installation and convenient storage.

Rugged and Grow-Ready

Built for demanding cultivation environments with passive cooling, no fans, low noise, and an IP66 wet-location rating.

Optimized Light Coverage

Wide 120° beam angle provides broad and even light distribution under the canopy, helping reduce shaded areas and improve lower-plant light exposure.

Specifications:

Power: 145W

Input Voltage: AC 120–277V, 50/60Hz

Dimming: 0–10V, 2-Channel

PPE: Up to 3.0 μmol/J

PPF: 435 μmol/s

Spectrum: Red Spectrum + Far Red

Beam Angle: 120°

Power Factor: >0.95

Thermal Management: Passive Cooling

IP Rating: IP66 Wet Location

Working Temperature: 14°F to 104°F / -10°C to 40°C

Installation Method: Bracket Mounted

Certifications: DLC / ETL UL8800 / CE / RoHS

Warranty: 5-Year | Q90 > 36,000 hrs

Dimensions: 1224 × 74 × 78 mm / 48.19" × 2.91" × 3.07"

Weight per Lamp: 2.174 kg / 4.78 lb

*Pro-rated warranty. Coverage decreases over time. See full terms for details.
